Temel tanıtım:
Doğruluk:(okuma+kelime)
Pil Tipi: AAA pil * 2(pilsiz gemi)
Aşırı yük koruması: Direnç/diyot/frekans/kapasitans
Bu dijital pens ampermetre, küçük bir 4000 bit gerçek RMS ölçerdir ve aynı zamanda sesli yayın dijital ölçüm cihazıdır.Bu cihaz, yeni piyasaya sürülen devrim niteliğindeki dijital multimetre çipini benimser.Çip, 4MHz dijital gerçek RMS değerini ölçmek için dijital bir işlemciyle donatılmıştır.Yerleşik kalibrasyon programı, çeşitli yüksek hassasiyetli dijital düzeltmeleri kolaylıkla tamamlayabilir.
Yüksek güvenilirlik, güvenlik yeterliliği, yüksek hassasiyet, minyatürleştirme, tam kapsamlı aşırı yük koruması, güvenilir ölçüm doğruluğu ve benzersiz görünüm tasarımı dahil olmak üzere özellikler değerlidir.Mükemmel performansıyla yeni nesil pratik elektrik/güç ölçümü haline geldi.
Teknik Özellikler:
PN106Bilgi Formu
İşlev
Menzil
Çözünürlük
Hassasiyet
AC voltajı
0V-600V
1mV-1V
±(1.5%+5)
DC voltajı
0V-600V
0,1mV-1V
±(1.2%+5)
AC akımı
0A-600A
10mA-1A
±(3%+20)
DC akımı
0A-600A
10mA-1A
±(3%+20)
direnç
0Ω-40.00MΩ
100mΩ-10KΩ
±(1.5%+2)
kapasitör
0nF-4mF
10pF-1uF
±(5%+15)
Hz frekansı
0Hz-4MHz
0,1Hz-1kHz
±(2.5%+5)
diyot
√
Model
PN106
buzzer
√
Pil
AAA pil*2
NCV indüksiyonu
√
Ekran
LCD ekran
Bağıl değer
√
Malzeme
ABS
Düşük pil istemi
√
Maksimum sayım
4000 sayım
Veri saklama
√
Otomatik kapanma
√
Çene açıklığı çapı
30mm/1,18 inç
ANENG PN106 4000 Sayım Ses Yayını Pens Metre 600A AC/DC Akım True RMS Dijital Multimetre Kelepçe Diyot Hz Ohm Test Cihazı Araçları
Paket:(pilsiz gemi)
Seçime göre


















window.adminAccountId=2678280160;























Patty Balser –
Everything is OK.
Néo Lortie –
Good seller.Thank you!
Alpha Um –
Good product, so exactally that i want.
Carla Poole –
Good product… However in the resistance range there is a small variation …. May indicate incorrect results. But overall it is a good cost-effective product. I bought more to measure DC chain.
Rudolf Kirsch –
Tested on a couple of occasions and worked perfectly with 12v direct current.
Fritz Filippi –
All good. Would have preferred one that uses a 9v battery though.
Efan Wharton –
I arrive as good the instrument
Diedra Spath –
Excellent product and excellent international AliExpress seller, highly recommended. Thanks from Chile!
Clarita Pursell –
very nice
Branda Goshorn –
Really good. I recommend
Tandy Hoyte –
Shvidka delivery, everything is good to the inventory. Putting the batteries, everything is good. Automatic vibration. Chokhol of the infallible. I recommend it.
Vladimiro De Angelo –
Everything OK
Oscar Álvarez –
Ok
Dastan Nurbolatev –
Very fast delivery
Finn Junkermann –
Arrived quickly packing a whole think and will work well
Iside Casaletto –
He arrived within the stipulated time. It meets my expectations. Thank you!
Samirah Hood –
Fast shipping, great item. Amazing salts
Franchesca Schwebach –
Does not include batteries, works well and arrived fairly quickly
Jaimee Harter –

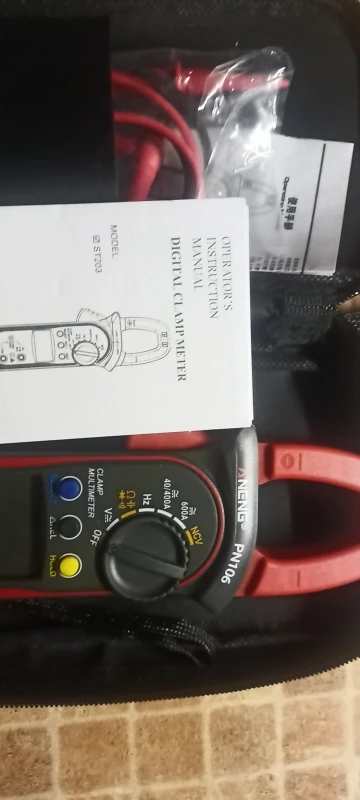

For sure. They put the Instruktsiya on the English language for the next Prilad, and so everything is good.
Shante Dezern –
Goods arrived well packed and works perfectly
Eleri Barnes –
Everything is OK, despite the fact.
Aasiyah Haney –
It’s all great.
Gérald Courbet –
Received in 13 days is good!

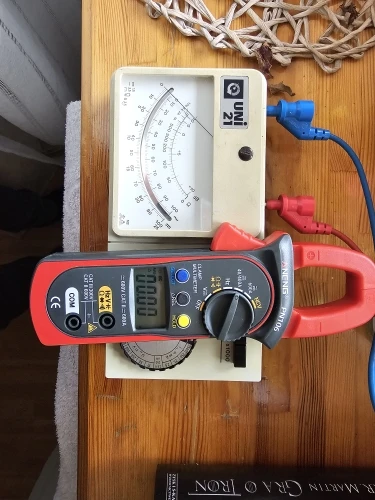

All functions tested against a fluke, satisfactory result.
Only notable difference the Fluke is practically plus fast on display than the PN106.
But given the price difference and my use it suits me very well.
If it is only the speed that makes the price it is very expensive paid the second among the plus expensive brands.
Maariya Kramer –
good!!!
Jaqueline Phipps –
Measures DC current accurately. Automatic ranging. Lots of features. Very fast shipping.
Cindi Mcfarlin –
Arrived quickly very well seller recommend measuring DC amperes different bells and whistles.
Gianmaria De Sario –
The completeness is also good ^ ^ The DC current can be measured, but the price is very good… If only durability is no problem, it is an unconditional recommendation. When I checked the car battery charge, the current is well measured. It is recommended.
Olevia Lauder –
Easy handling, good quality. The case is of good quality. Arrived before the stipulated time, I recommend it
Coleen Dragon –

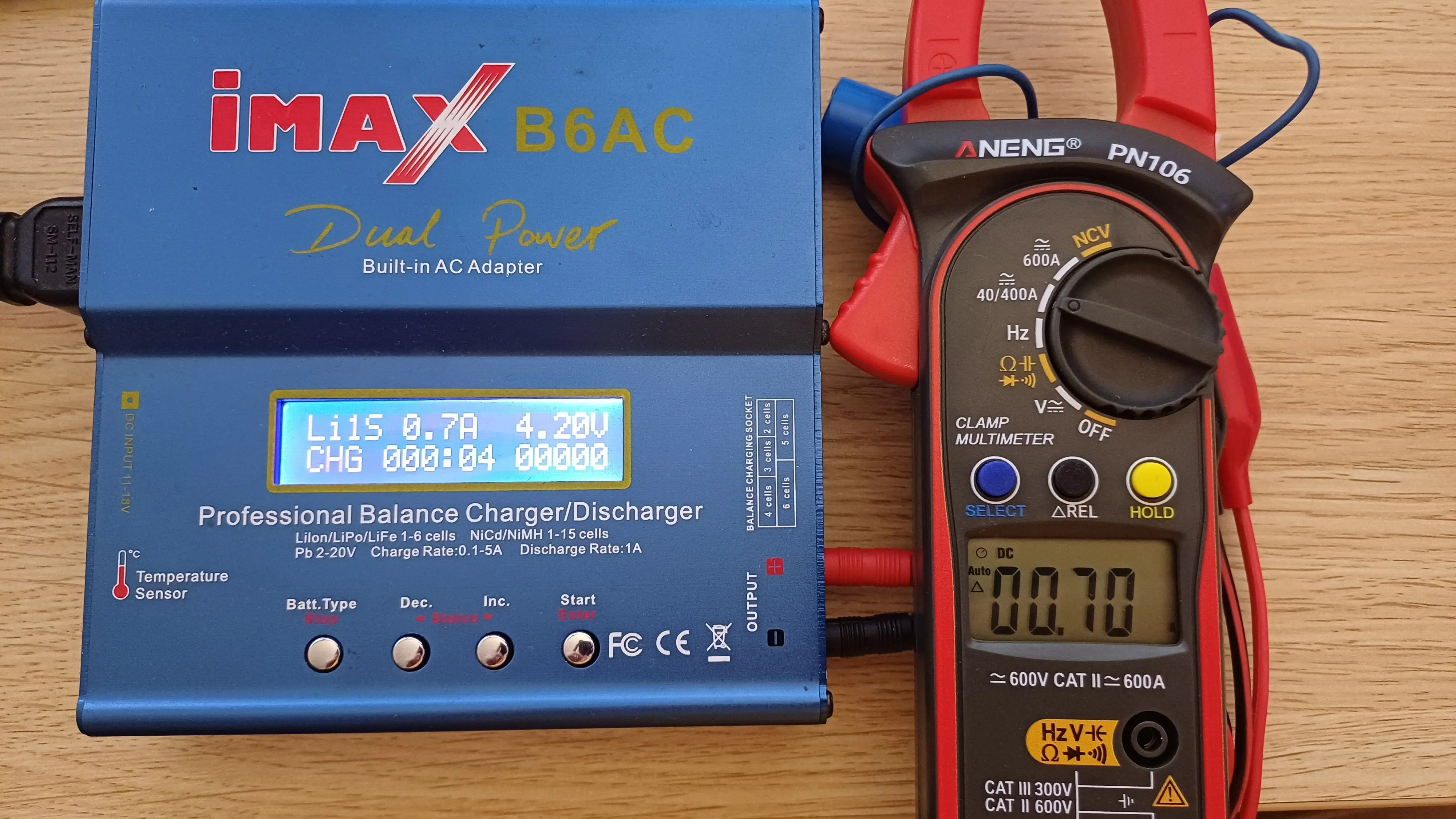

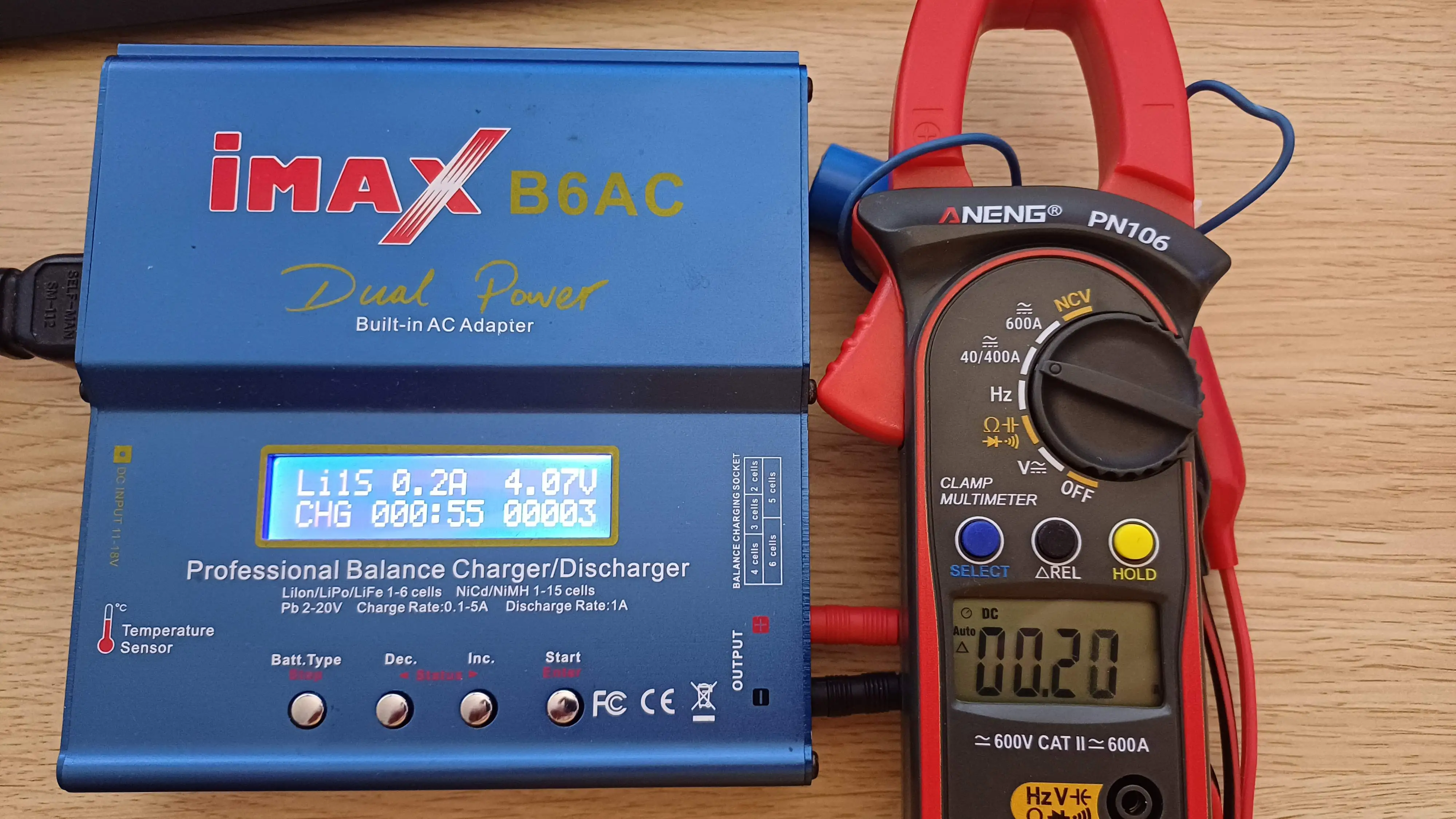

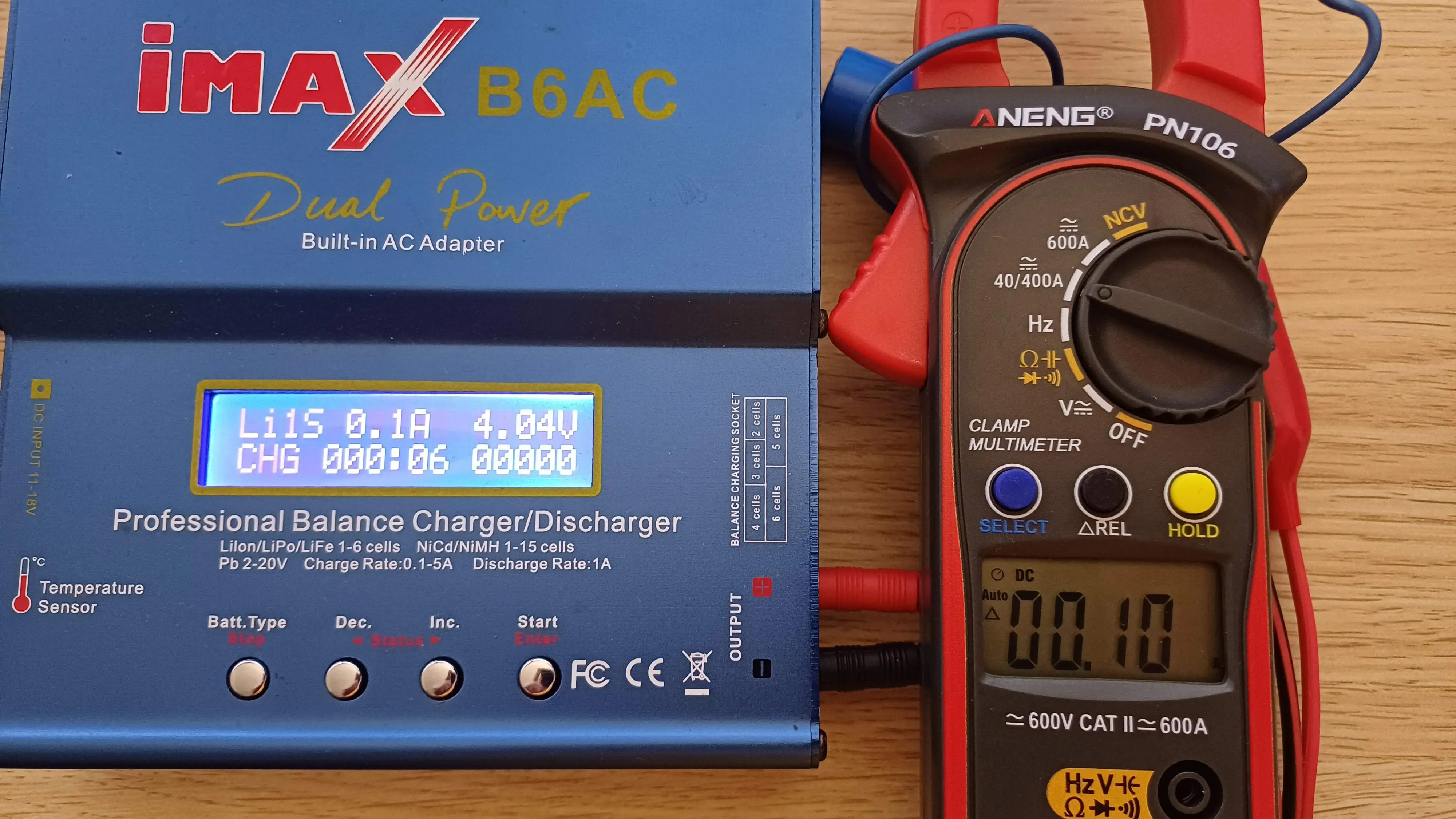

It is great device for the price. Please consider that when measuring DC current, it will show non-zero value when there is no cable. You have to press REL button to zero it and then measure the current. It was quite accurate when testing with a battery charger. The value sometimes went lower by 0.01A.
Joseph Garreau –
Good product! Corresponds to the declared characteristics. I will give 5 stars to this wonderful product, and also 5 stars for the delivery speed.
Ted Basye –
Excellent. Thanks.
Debbie Tanner –
Great, corresponds to the product seen on the site. Seems to be of good quality, I do not regret having ordered it
Germain Beaumont –
It still needs to be tested with batteries but everything looks good, super fast shipping, good buy.
Gérald Noir –
Super meter. I recommend
Demarcus Mcmullen –
Looks like a good product, for a precise evaluation I have to try it.
Major Woodrum –
Perfect very fast delivery!
Xose Mendez –
Good product
Winston Hyde –
Very good I like
Liberatore Accordino –

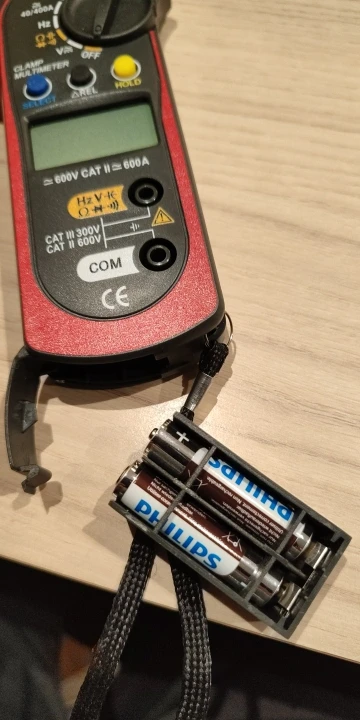

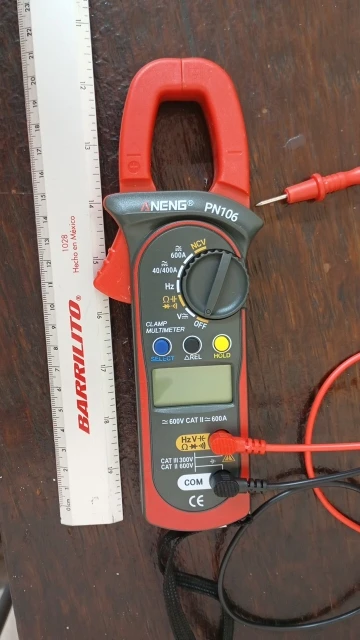

Delivered to Chiapas Mexico in 12 days, the product quality is just as described, very practical, maybe I would say a bit light but until now I have tried it for voltage and amperage and it has worked very well for me, I liked the use of two AAA batteries, without a doubt recommended.
Armaan Ellison –
Delivery is fast. It works fine.
Takako Ream –
is ok and IT is working
Isadora Heer –
The meter arrived ahead of time, exemplary delivery. WS, the other functions are working properly. Super workmanship. I recommend the seller.
Prudence Rodden –
good!
Kawano Tanyu –
Very good for professional work thank you
Gage Edmonds –
The product is great and I tried it and it works as its description
Graham Rankin –
It does work. Definitely on the cheaper side, but the price is right.
Jannette Wilmes –
Good product works well measures perfect CD has good quality with respect to the price I recommend it
Niam Mullins –
works perfectly
Rosalie Robertson –
Good clamp, to measure continuous consumption is fantastic. The material is plastic, but for domestic use of leftovers
Susann Masson –
It looks like a toy is not very well done, but it does its duty, at least it works.
Very fast shipping.
Recommended seller.
Kemberly Roza –
It has a DC curent measurement-ATTENTION! IMPORTANT: To make the DC current (DC current) accurate, you must reset the indication before measuring with the REL button! For me, for amateur use is OK.
Marchelle Dowden –
Very good cost benefit
Wendelin Jonas –
Went well, and it’s worth the cost
Fukumoto Shusake –
Goods according to the description came quickly well packed
Durante Sciara –
The product is great, very good and durable I will continue to use it for a long time, I really liked it very much I recommend it and I would buy it again.
Lluciano Marcos –
super
Fernand Aveline –
Arrived fast as ordered.
Nour Hartman –
all is ok
Verline Cordon –
Very fast excellent tool
Adella Tarry –
I arrived quickly and everything in good condition, reaching everything as in the image, now it remains to put batteries and try it
